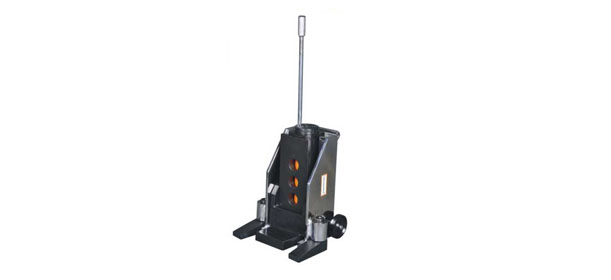

Hydraulic Toe Lift Machine Lift Jack
| Model | Capacity | Stroke | Total Body Closed Height |
Total Extended Height | Toe Clearance | Approx Weight |
| Tons | mm | mm | mm | mm | kg | |
| HTJ-5 | 5 | 150 | 290 | 440 | 20 | 20 |
| HTJ-10 | 10 | 150 | 315 | 465 | 30 | 30 |
| HTJ-20 | 20 | 150 | 325 | 475 | 60 | 65 |
Features / Benefits
- High strength, Heat treated alloy steel body for better life.
- Hard chrome plated ram to resist scoring and corrosion.
- Single acting load return. Precise machined body for smooth operation.
- Wiper to arrest ingress of foreign particles.
- Easy adjustable toe fixing positions for different heights and strokes.
- Grooved toe to avoid load slippage
- High pressure long life seals. Quick change coupler with dust cap.
- Advantage to use single or multiple jack with common pump.
- Adjustable legs for extra grip. Castor wheels for easy mobility.
- Port size 3/8" NPT
- Working Pressure : 700 bar
Application :
- Looking into the hardship of heavy duty machine movement and wide variety of lifting problems, POWERJAC. has developed range of hydraulic Toe-Jacks with toe height of minimum 1" and capacity 5-20 tons. These can be used in multiple jacking system by help of single hand pump.
- They find applications for movement of heavy machineries, transformers, structural equipment & oil rigging.
